What
is a light sensor
A light sensor, as its
name suggests, is a device that is used to detect light. There are many
different types of light sensors, each of which works in a slightly different
way. A photocell or photoresistor, for example, is a small sensor that changes
its resistance when light shines on it; they are used in many consumer products
to determine the intensity of light. A charged coupled device (CCD) transports
electrically charged signals, and is used as a light sensor in digital cameras
and night-vision devices. Photomultipliers detect light and multiply it.
Devices that include
these sensors have many uses in scientific applications, but are also found in
items that people encounter each day. A simple light sensor may be part of a
security or safety device, such as a burglar alarm or garage door opener. These
types of devices often work by shining a beam of light from one sensor to
another; if the light is interrupted, an alarm sounds or the garage door won't
close.
Many modern
electronics, such as computers, wireless phones, and televisions, use ambient
light sensors to automatically control the brightness of a screen, especially
in low-light or high-light situations. They can detect how much light is in a
room and raise or lower the brightness to a more comfortable level for the
user. Light sensors also may be used to automatically turn on lights inside or
outside a home or business at dark.
project
Today we are going to look at simple circuit that
can basically turn ON or OFF a bulb using
simple combination of few active and passive component hence there is
need to understand the how LDR works
What is a Light
Dependent Resistor or a Photo Resistor?
A Light Dependent
Resistor (LDR) or a photo resistor is a device whose resistivity is a function
of the incident electromagnetic radiation. Hence, they are light sensitive
devices. They are also called as photo conductors, photo conductive cells or
simply photocells.
However light dependent resistor works on the principle
of photo conductivity.
Photo conductivity is
an optical phenomenon in which the materials conductivity is increased when
light is absorbed by the material.
Circuit
diagram
This an electronic
circuit built with LDR, lamp, battery, transistor & resistors shown in the
below circuit diagram.
The required DC voltage
of the LDR circuit is supplied from a bridge rectifier circuit or a battery.
if one is using a
rectifier it changes the AC supply into a DC. The bridge rectifier circuit uses
a step-down transformer to step-down the voltage from 230v into 12v . The diodes are connected in the form of a
bridge used to alter the AC voltage into DC. The voltage regulator is used to
change the 12v DC-6v DC, and then, this DC voltage is supplied to the entire
circuit. A 230v AC supply for both the bridge rectifier and the load is to be
kept continuously for continuous operation of the light sensor circuit.
In the morning time,
this sensor has a low resistance around 100Ω. Thus, the power supply flows
through the LDR & ground through the variable resistor and resistor as
shown in the above light sensor circuit. This is due to the resistance offered
by the light dependent resistor in the daytime or when the light falls on the
LDR, then it is less compared to the resistance of the remaining part of the
sensor circuit . We are alert of the principle of current, that the flow of
current always flow in the path of low resistance.
Therefore, the lamp
does not get sufficient supplies to get strengthened. Hence, the light is
switched off in the daylight. In the same way, during the night time, the
resistance of the LDR increases to a high value (20MΩ). Thus, due to the high
resistance of the resistor, the flow of current is low or almost zero. Now, the
flow of current through the low-resistance lane such that it increases the base
voltage of transistor to reach more than 1.4v. As the transistor is triggered, lamp acquires enough
supply to get brighten up .

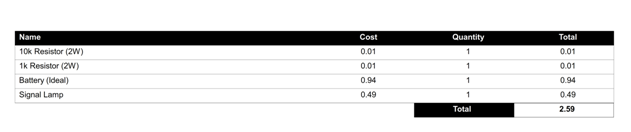

BOQ
